[Product Overview]

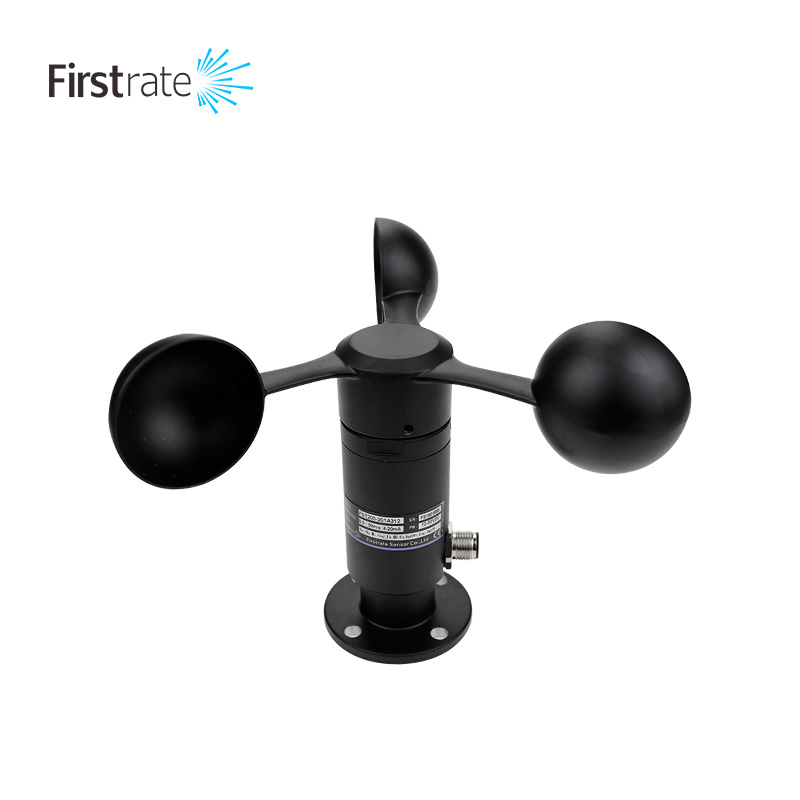

The heated wind speed and direction sensor is a wind parameter sensor developed for the natural environment with characteristics such as lightning, heavy rain, low temperature, heavy dust, strong wind, etc., which needs to resist extreme environmental factors. The sensor has a built-in analog circuit with strong resistance to radio frequency, electromagnetic interference and lightning surge, and collects the speed of the wind cup to output an electrical signal that is linearly related to the ambient horizontal wind speed. The heated wind speed and direction sensor can meet the requirements of accurately measuring wind speed (wind direction) under harsh climatic conditions such as desert, wind power generation, ultra-low temperature, freezing rain, snow and frost (high humidity).

[Product Features]

● Rotating blades do not deform at high wind speeds
● Anti-high-frequency electromagnetic interference
● Good seismic performance
● Anti-seawater corrosion
● Self-heating deicing function to prevent freezing

[Application Scope]

Accurately measure the direction of the wind under harsh climatic conditions such as deserts, mountains, coastal areas, oceans, high altitudes, ultra-low temperatures, freezing rain, snow and frost (high humidity).

【Technical Parameters】

Measuring range	0~50m/s
	0~360°
Start wind speed	≤0.5m/s
Precision	±0.5m/s (VL≤30m/s)；3%FS (VL>30m/s)
	±2.5°
Output signal	4~20mA/0~20mA/0~5V/0~10V
Operating Voltage	18~36V DC
Heating voltage	24V DC (120W)
Operating temperature	-40~+70°C
Working humidity	0~100% relative humidity
Degree of protection	IP66
Heating start temperature	6℃±2℃
Stop heating temperature	60℃±5℃
Wind strength	≥60m/s
Resolution	0.1m/s
Static protection	15KV
Wind cup material	Aluminum alloy

【Product Details】



[Dimensions]



[Ordering Guide]

Особенности

◇ Разработанный на основе принципа бесконтактного магнитного датчика, собираемые данные имеют высокую точность и надежность.

◇ Широкий диапазон измерения скорости ветра, низкая начальная скорость ветра.

◇ Датчик скорости ветра изготовлен из материалов с хорошей коррозионной стойкостью и высокой ветроустойчивостью.

◇ Защита цепи имеет отказоустойчивую конструкцию, и датчик не будет поврежден в случае неправильного подключения.

◇ Многоуровневая молниезащита и конструкция, устойчивая к перенапряжениям.

◇ Может работать в широком диапазоне напряжений 18-36 В постоянного тока.
